WINDtex SHIELD


<br />WINDtex SHIELD

WINDtex Shield is a technology which guarantees Protection against the Wind, Breathability and Great Comfort.
ELASTIC FABRICS laminated with a special foam. that provide to be WINDPROOF, to have an high BREATHABILITY and WATEREPELLENT with external HYDRO treatment. The special internal lamination provide an optimal climate for the body and the maximum COMFORT with a good protection against the elements, and in the meantime promothes optimal BREATHABILITY. The internal MICROFLEECE mantain your body temperature.
This jacket is comfortable for all season, from 13/15 °C to the lowest temperature.

Technical Data Sheet
Scheda Tecnica

Windtex Shield
spalmatura altamente traspirante e antivento

1. Structural Characteristics / Caratteristiche della struttura

1.1 Textile Composition
Composizione (D.L. n°194/99)
100% polyurethane / 100% poliuretano
1.2 Total Weight / g/m²
Peso totale
25/30 g/m²

2. Mechanical and Physical Performance
Caratteristiche meccaniche e fisiche

Testing method
Metodo di prova

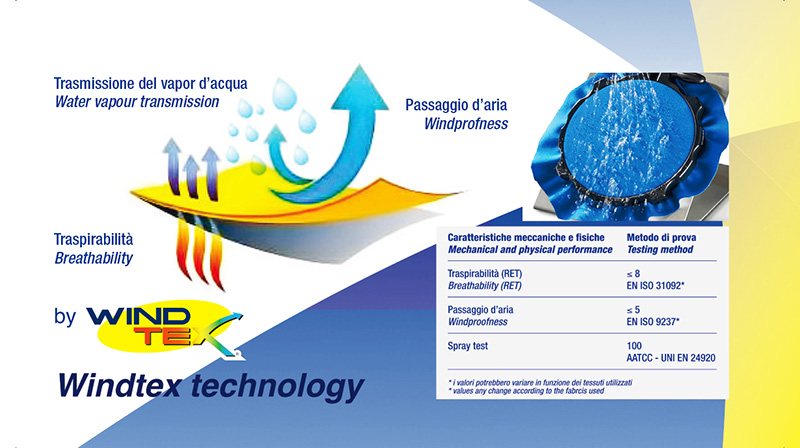

2.1 Water Vapour Transmission
Trasmissione del vapor d’ acqua
≥ 700 gr/m²x24h (*) UNI 4818/26
2.2 Breathability (Ret)
Traspirazione (Ret)
≤ 20 m² Pa/W (*) EN ISO 31092
2.3 Windproofnes
Passaggio d’aria
≤ 15 mm/sec(*) EN ISO 9237
2.4 Care Instructions (UNI EN ISO 3758:2005)
Simboli di lavaggio

(*)
Values found on bonding fabrics.
Valori riferiti ai tessuti accoppiati.
WINDTEX VAGOTEX SPA – Quality Dept.
Colognola ai Colli, 20 gennaio 2015, rev. 3

All information of this technical sheet are the result of the medium values taken from our production. Possible differences are within the tolerances in use in our field. In order to improve the product we reserve to introduce changes if necessary.

Tutte le informazioni presenti su questa scheda sono il risultato di un media presa dalla nostra produzione.Sono possibili variazioni come previsto nei nostri standard. Al fine di poter migliorare il prodotto ci riserviamo di apportare qualsiasi modifica quando ritenuto necessario.
